DNV GL Interview: Study on scrubber operation challenges
Classification Society DNV GL on Thursday (16 January) published an interview conducted by the organisation with Dr. Fabian Kock, Head of Environmental Certification, DNV GL regarding a study it has conducted with shipowners on the challenges in installing and operating scrubbers:
The Global Sulphur Cap is in force now and many owners have opted for Exhaust Gas Cleaning Systems (“SOx scrubbers”) to achieve compliance. DNV GL conducted a study to learn about owners’ experiences of installing and operating scrubbers. The insightful results can help the industry avoid some of the challenges.
Dr Fabian Kock joined DNV GL in 2009 after studying mechanical engineering in Hamburg, Sydney and Chennai and subsequently gaining experience in the field of engine development. In his current position as Head of Environmental Certification at DNV GL, his section is responsible for environmental certification of marine diesel engines, marine exhaust gas aftertreatment systems such as SCR catalysts and scrubbers, and certification of the energy efficiency of ships.
DNV GL: What is the current situation in the scrubber market? Will all scrubbers be installed in time to ensure compliance with IMO’s Global Sulphur Cap?
FK: We know that there is currently a four- to five-month backlog of vessels that should have been retrofitted by the end of last year. The number of vessels that need to be retrofitted has accumulated so it will probably take until April or May to complete all scrubber installations.
DNV GL: What are the reasons for the backlog?
FK: The reasons are manifold. Material shortages and limited yard capacity are the biggest issues. For example, there is only a limited number of manufacturers of GRE pipes in China where most scrubbers are installed. Designers and yards have a high workload of retrofit installations, and lack of staff has doubled the installation time at yards from 40 to 80 days. At the same time, class societies had to cope with a higher number of vessels needing to be surveyed during peak times. Therefore, DNV GL started to offer remote surveys for exhaust gas cleaning systems on sister ships.
DNV GL: What do owners need to know when their installation is delayed?
FK: From 1 January 2020 vessels must run on very low-sulphur fuel oil (VLSFO) or with scrubbers. If a scrubber has not been installed in time, operators need to switch to VLSFO until a scrubber has been installed and approved. An even harder deadline is 1 March 2020: from this date on, even the carriage of high-sulphur fuel oil (HSFO) on vessels without scrubbers is prohibited. This means that operators of ships not equipped with scrubbers must remove all HSFO from board and clean the tanks. They will only be allowed to carry HSFO again and use it as fuel after installing a scrubber system.
DNV GL: What needs to be considered before installing a scrubber?
FK: Planning is an important factor because it takes time. In the case of a newbuilding project, the fuel price is the crucial factor that decides whether to opt for a scrubber or VLSFO. At a price difference of about 200 USD per tonne of fuel, scrubber installation is attractive. But long-term precise price predictions are very difficult. Furthermore, choosing the right material and coatings to avoid corrosion of the piping is essential as well. GRE pipes with a diameter of up to one metre need supporting struts to avoid damage when litres of heavy wash water flushes through them.
DNV GL: Based on the recently published operational experience study, what are the main challenges with scrubbers during operations?
FK: Leakage and corrosion of SOx scrubber overboard pipes have been reported. To account for that risk, DNV GL has updated its rules and requires annual thickness measurements on various overboard pipes and spool piece designs. Sensor failures are also a big concern, and adhering to planned maintenance intervals is of utmost importance. When a sensor fails, the control system can get the wrong data and cause an incorrect or unnecessary operational response. Misleading sensor data can also falsely suggest that emissions are within limits and only when the emissions are checked by an authority will this be detected. In that case, the operator may get a penalty in the form of a high fine; in some ports the responsible officer might even be arrested. Some EU and Chinese ports have fitted sensors at the quayside, and on some occasions, PSC officers equipped with a handheld sensor have boarded to check emissions. Drones are also used in some areas to measure vessel emissions.
DNV GL: What can vessel operators do to avoid or overcome these challenges?
FK: Adherence to the planned maintenance intervals and concluding a service agreement with the sensor manufacturer helps a lot. Keeping spare parts on board is also vital to avoid prolonged scrubber outages. Furthermore, a preliminary test of the control system can help avoid failure during operation as well as costly repairs or reinstallations. DNV GL already offers hardware-in-the-loop testing for these control systems at the workshop to check how the control system behaves in various situations and extreme conditions, such as very low or high temperatures, which can be simulated during these tests as well.

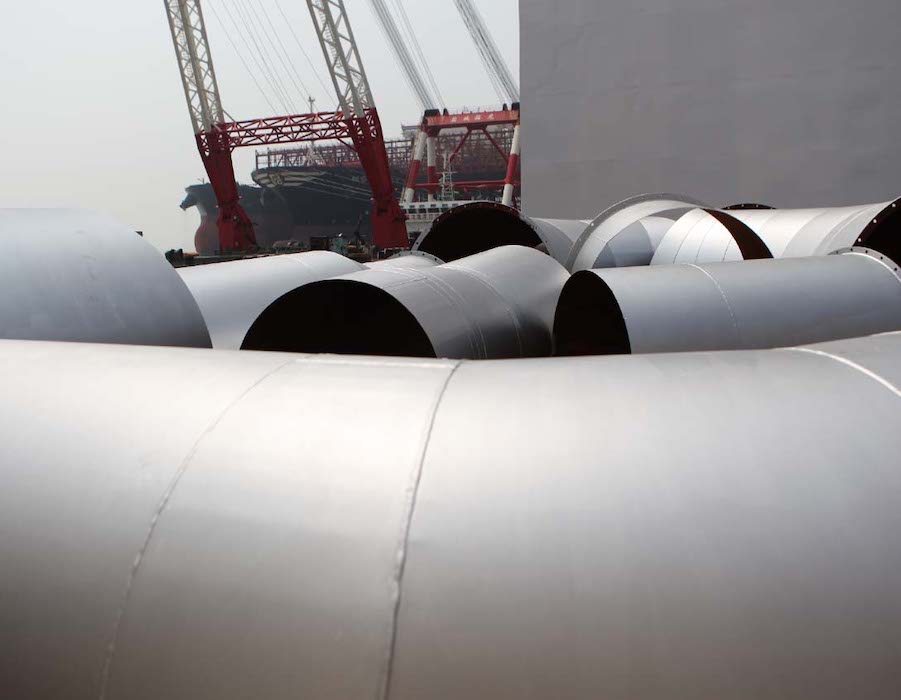

Photo credit and source: DNV GL
Published: 7 February, 2020
