VPS: Houston contaminated VLSFO bunker fuel was also supplied in Singapore

Out of 14 vessels bunkered with contaminated VLSFO, 12 of them received their fuel in Houston while two vessels received their fuel in Singapore; fuel delivered by four suppliers.

Admin

Published

on

Untitled design 16

Marine fuel testing firm VPS on Monday (7 August) delivered an update on the recent VLSFO marine fuel contamination in Houston, revealing out of 14 vessels, two vessels were supplied with contaminated fuel oil in Singapore and 12 vessels received it in Houston.

On 10 July, VPS informed its customers and the wider market, of the presence of Dicyclopentadiene (DCPD) isomers at significantly high levels within VLSFO bunker fuel deliveries in Houston. The contaminants were detected using in-house GC-MS (Gas Chromatography – Mass Spectrometer) analytical methodologies.

Initially, VPS highlighted eleven vessels had suffered operational issues, such as loss of power and propulsion whilst at sea. These effects resulted from fuel leakage in the ICU (Injection Control Unit) units and fuel pumps not being able to develop the required fuel pressure, affecting only the Auxilary engines and not Main engines. The contaminated VLSFO had been delivered in Houston, by one single fuel supplier.

Four weeks later, VPS can now provide a further update on the spread of this fuel contamination issue: Fourteen vessels in total, have now received this contaminated fuel and suffered some form of damage to their auxiliary engines and fuel delivery systems. Twelve of the vessels received their fuel in Houston, whilst a further two vessels received their fuel in Singapore, with the fuel delivered by four suppliers.

The specific contaminants are:

  • Di-hydro dicyclopentadiene
  • Chemical CAS Number: 448-57-7
  • Tetra-hydro dicyclopentadiene
  • Chemical CAS Number: 6004-38-2

DCPD’s are unsaturated chemical compounds which can polymerise and oxidise under certain conditions. However, the rate of this polymerisation process can be reduced by the presence of inhibitors that are typically found within fuel oil.

Should these compounds start polymerising, the fuel begins to exhibit a level of stickiness and become more viscous, making it difficult for moving components, such as fuel pump plungers and the fuel injector spindles to move freely. These effects cause damage to the fuel injection system.

Over a period of time excessive sludge formation is likely to be experienced. The DCPD compounds that were detected in this fuel ranged from 3,000 to 7,000 ppm (0.3-0.7%) per delivery.

VPS employed it’s own proprietary GCMS Vacuum distillation methodology to detect DCPD, in preference to the ASTM D7845, Standard Test Method for Determination of Chemical Species in Marine Fuel Oil by GCMS. The VPS methodology is capable of detecting and measuring the DCPD and its isomers, whereas the ASTM D7845 methodology is limited to detecting only 29 chemical contaminants, which does not include DCPD species.

In addition to the fourteen vessels suffering damages from burning this fuel, a further 18 vessels who received the contaminated fuel from thirteen additional suppliers, either witnessed no adverse reactions, or simply did not provide any feedback regarding any damages.

In total, the volume of contaminated fuel delivered to the 32 vessels, was 61,494 metric tonnes. Three vessels de-bunkered the contaminated fuel prior to burning, following a “Caution” result from the VPS Chemical Screening service, highlighting the value of this pre-burn service.

A further three vessels de-bunkered the fuel after suffering initial engine damage from burning the fuel. Whilst another two vessels burnt the fuel in their main engines without issue after switching it from their auxiliary engines, where it had caused operational damage.

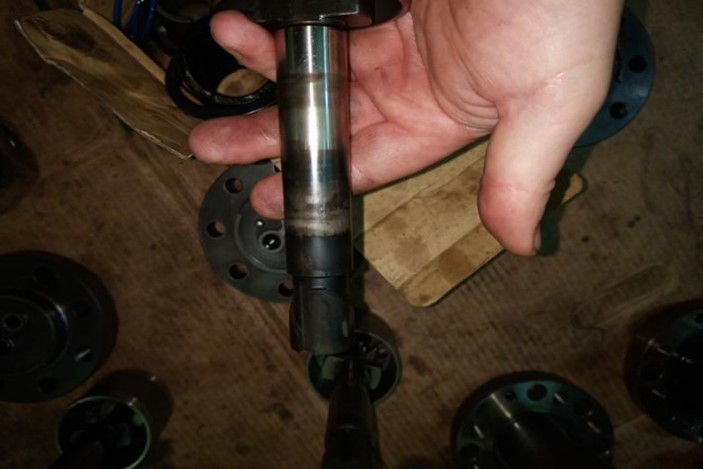

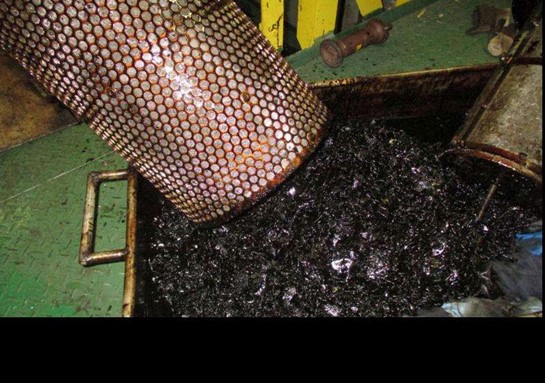

Figures showing sludge formation in filters (top) and ceased fuel pump plunger (bottom)

VPS: Houston contaminated VLSFO bunker fuel was also supplied in Singapore
Picture2 2

Related: VPS identifies new bunker fuel contamination at Houston
Related: FOBAS: Possible bunker fuel contamination in Houston and US Gulf area
Related: Viswa Group gives update on bunker fuel issues in Houston
Related: FuelTrust analysis finds fuel content discrepancies in 39% of global bunker deliveries

Photo credit: VPS
Published: 8 August, 2023
