IBIA’s position on Coriolis Mass Flow Meter adoption in bunker industry

International bunker ports will need to consider adoption of MFMs to remain relevant and utilising an established international standard offers a strong solution in this direction, says IBIA.

Admin

Published

on

post 56991

The International Bunker Industry Association (IBIA) on Monday (21 August) released an article on its position on the adoption of Coriolis Mass Flow Meters (MFMs) in the bunker industry where it pointed out that international bunker ports will need to consider the adoption of MFMs to remain relevant especially with the further use of the electronic Bunker Delivery Note (e-BDN).

Background

IBIA supports greater transparency in the bunker sector, with the Coriolis Mass Flow Meter (MFM) as one of the solutions. The joint IBIA and BIMCO survey in 2022 established a strong desire from the bunker industry to increase transparency between suppliers and buyers, reduce quantity disputes and create a level playing field for bunker suppliers and buyers.

The benefits of the MFM have been proven in the Port of Singapore where the implementing authority,

Maritime & Port Authority of Singapore (MPA) has mandated the use of mass flow metering system for custody transfer of all marine residual fuel oils since 2017 and since 2019 for all distillates. Supporting the implementation of MFM has been the development of Singapore Standards and mandatory application SS648:2019, which has provided a holistic approach in bunker assurance measurement, while maintaining a high-level integrity of the MFM system, through robust standardisation and audit regime, along with continual industry engagement in developments of the standards and regulations.

International Standards on Bunker Mass Flow Metering

IBIA acknowledges that some bunker ports already have in place national or regional legislation on measuring instruments such as MFMs for use in general trade or custody transfer and that these MFMs meet the prescribed requirements to ensure their readiness for oil and gas measurement. However, these requirements may not necessarily be specific to bunker fuel measurement mainly due to the complexity of bunker fuel and its operational transfers.

The International Standard Organisation’s ISO22192:2021 offers a unified approach, ensuring the MFM system installed on a specific bunker tanker conforms to the requirements of a bunker operation.

Based on the experience and knowledge gained from bunker stakeholders, ISO22192 was developed for the bunker industry to:

  1. enhance the efficiency of the bunkering operation
  2. promote best practices in bunker fuel measurement and
  3. provide the fundamental principles, requirements, and procedures of the MFM system.

The standard focuses on the metering operation providing the procedures and requirements of handling the MFM system in a bunker delivery operation. The guidelines also ensure that the MFM system continues to maintain its conformity to the prescribed requirements, through equipment metrological verification and regular certification by independent inspection companies, thereby further strengthening confidence and assurance in ports that adopt MFMs for bunkering.

The IBIA Bunker Licensing and MFM Working Group supports all ports in their implementation of MFMs. An international standard like the ISO22192 will harmonise MFM practices and requirements, thus avoiding confusion among industry stakeholders.

Embracing Digitalisation

In today’s digital landscape, the adoption of MFM will support the further use of the electronic Bunker Delivery Note (“electronic BDN”) which was formally approved at MEPC 80. MFM are an important solution to streamline digitalisation for end-to-end bunker operations as this can support real time measurement and operational information needed for the use of electronic BDNs.

In this respect, it is expected that other international bunker ports will need to consider the adoption of MFMs to remain relevant and utilising an established and harmonised international standard offers a strong solution in this direction.

Related: IBIA: MEPC 80 confirms acceptance for electronic bunker delivery notes
Related: IBIA: IMO sub-committee accepts use of electronic BDNs after long discussion
Related: Dr Edmund Hughes steps in as IBIA’s new IMO Representative
Related: IBIA, Green Marine ink deal to provide methanol bunker training, starting in Singapore
Related: IBIA: MARPOL amendments clarify status of “fuel oil”, “gas fuels” and “low-flashpoint fuels”
Related: IBIA: Historic day as IMO adopts revised GHG Strategy
Related: IBIA puts spotlight on alternative bunker fuels during IMO’s GHG negotiations



Photo credit: International Bunker Industry Association
Published: 22 August, 2023

Continue Reading

Business

Minerva Bunkering launches service at King Abdullah Port with first bunkering op

Firm has expanded its Saudi Arabia Red Sea operations to serve vessels calling King Abdullah Port, having now performed the first bunker delivery ever conducted in the port.

Admin

Published

on

By

post 56919

Independent bunker supplier Minerva Bunkering on Thursday (10 August) said it has expanded its Saudi Arabia Red Sea operations to serve vessels calling King Abdullah Port, having now performed the first bunker delivery ever conducted in the port.

The firm said situated at the crossroads of global trade routes interlinking three continents, King Abdullah Port is amongst the world’s fastest growing ports where it will be supplying VLSFO, HSFO, and MGO.

Consistent with this expansion, Minerva has added a mass flow meter equipped barge, the 6,262 DwT MV Tilos, to its fleet supporting Yanbu, Jeddah, and now King Abdullah ports.

“With King Abdullah Port located in between Yanbu and Jeddah we are able to leverage our integrated Red Sea supply system to provide customers with a highly competitive total cost of bunkers, both for deliveries to vessels concurrent with cargo operations and while at anchor,” said Minerva CEO, Tyler Baron.

Manifold Times previously reported King Abdullah Port announced a strategic partnership with two providers of marine fuel supply and services: Western Fuel Supply for Petroleum Products Company Limited and Minerva Bunkering.

Related: Minerva Bunkering signs agreement to supply bunker fuel in King Abdullah Port
Related: Egypt awards its first bunkering licence for international firms to Minerva Bunkering
Related: Egypt: SCZone to launch bunkering service at East Port Said Port and Ain Sokhna Port
Related: Minerva Bunkering completes first bunker fuel deliveries in Egypt
Related: SCZONE achieves milestone with first bunkering operation in Sokhna port
Related: West Port Said Port reaches milestone with second bunkering operation

Photo credit: Minerva Bunkering
Published: 11 August, 2023

Continue Reading

Business

Singapore: Industry players weigh in on debunking MFM bunkering flowrate reduction myth

Variety of shipowners and bunker suppliers, including Metcore International and Endress+Hauser, tell Manifold Times if bunkering flowrate has been an issue since introduction into the Singapore bunkering sector.

Admin

Published

on

By

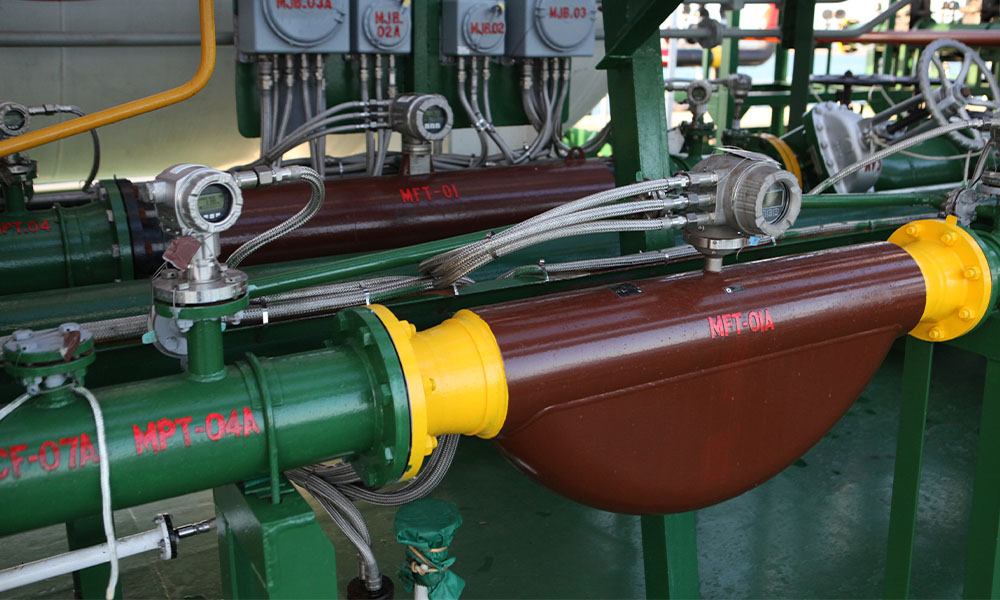

EH dual MFM setup
